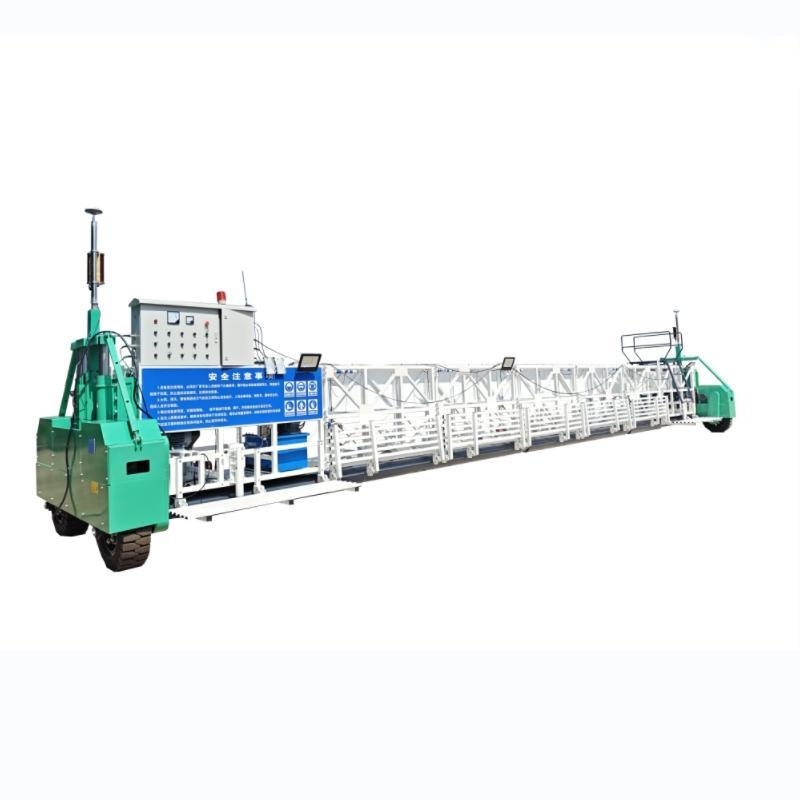

SMP-1200 Concrete Spreader Slipform Paver for Bridge Deck Paving

Rincian produk

Tempat asal: Jiangsu, Cina

Nama merek: Siming

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1

Harga: $29,000

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                concrete spreader slipform paver, bridge deck slipform paver, SMP-1200 slipform paver


Berat:	7000 kg	Catu daya:	380v
Dilengkapi kekuatan:	≥28kw	Motor penggerak roller:	7.5kw
Motor Berjalan Berjalan:	1kw	Sebarkan Lebar:	≤16m
Kecepatan berjalan:	0-10m/mnt	Kecepatan pengaspalan:	0-5m/mnt
Kapasitas tangki air:	300L	Volume oli hidrolik:	80L
Diameter poros batang:	ukuran 219 mm	Kecepatan poros batang:	240RPM
Frekuensi getaran:	≥3000 次/mnt	Antarmuka tampilan:	10 "Tampilan Warna Sentuh
Kontrol ketinggian:	Posisi otomatis laser

Berat:	7000 kg
Catu daya:	380v
Dilengkapi kekuatan:	≥28kw
Motor penggerak roller:	7.5kw
Motor Berjalan Berjalan:	1kw
Sebarkan Lebar:	≤16m
Kecepatan berjalan:	0-10m/mnt
Kecepatan pengaspalan:	0-5m/mnt
Kapasitas tangki air:	300L
Volume oli hidrolik:	80L
Diameter poros batang:	ukuran 219 mm
Kecepatan poros batang:	240RPM
Frekuensi getaran:	≥3000 次/mnt
Antarmuka tampilan:	10 "Tampilan Warna Sentuh
Kontrol ketinggian:	Posisi otomatis laser

SMP-1200 Concrete Spreader Slipform Paver for Bridge Deck Paving

SMP-1200 Concrete Spreader Curbstone Paver Pavers Bridge Machine

Product Specifications

Video outgoing-inspection	Provided
Machinery Test Report	Provided
Core Components	Engine, hydraulic pump, vibrating spear
Weight	7000 kg
Warranty	1 Year
UNIQUE SELLING POINT	Low Maintenance Cost
Power Supply	380V
Equipped with power	≥28KW
Rated power of roller drive motor	7.5kW
Spread width	≤16m
Walking speed	0-10m/min
Paving Speed	0-5m/min
Warranty of core components	3 years
Condition	New
Applicable Industries	Bridge, tunnel
Marketing Type	star product

Key Features

Modular assembly mode with split composite connection for roller shaft, enabling easy installation and width adjustment
Adaptable for bridge decks of varying widths, improving equipment utilization
Tire walking mechanism for operation on bridge deck steel mesh with hydraulic elevation adjustment
Dual vibrating rollers with adjustable height and inclination for precise leveling
Integrated flushing system for simplified maintenance
Built-in lighting fixtures for nighttime and tunnel construction
High-frequency vibration pushing plate maintains concrete in optimal flowing state
Efficient compaction design ensures concrete density and leveling
Large-diameter high-speed rollers for extended wear resistance and superior finishing

Technical Parameters

Power Supply	380V
Equipped with power	≥28KW
Rated power of roller drive motor	7.5kW
Rated power of walking drive motor	1kW
Display interface	10" touch color display
Operation control	Electrical cabinet control + software integration
Paving speed	0-5m/min
Walking speed	0-10m/min
Spread width	≤16m
Water tank capacity	300L
Hydraulic oil volume	80L
Rod shaft diameter	φ219mm
Rod shaft speed	240rpm
Vibration frequency	≥3000次/min
Walking style	Four wheel drive rubber wheel walking
Elevation control method	Laser automatic positioning
Laser positioning method	Encoder automatic real-time tracking
