SMP-600 Multi Roll Concrete Paving Machine for Bridge and Tunnel Construction

Rincian produk

Tempat asal: Jiangsu, Cina

Nama merek: Siming

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1

Harga: $4,200

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                multi roll concrete paving machine, bridge construction slipform paver, tunnel construction paving machine


Berat:	1000 kg	Panjang rol:	4000-6000mm
Kecepatan berjalan:	5 ~ 8 m/mnt	Seluruh kualitas mesin:	800-1500kg
Frekuensi eksitasi:	60 Hz	Kekuatan eksitasi:	5,5 buku
Ketebalan sebaran:	10-18mm	Kekuatan total:	10.5-16.5 kW
Komponen inti:	Mesin, pompa hidrolik, tombak bergetar	Frekuensi getaran:	200 Hz
Kekuatan eksitasi khusus:	≥30 kN	Ketebalan penyebaran khusus:	10-50 mm
Daya total khusus:	15-50 kW	Struktur mesin:	Rangka dengan pipa baja yang menebal
Perangkat berjalan:	Rol atau roda baja

Berat:	1000 kg
Panjang rol:	4000-6000mm
Kecepatan berjalan:	5 ~ 8 m/mnt
Seluruh kualitas mesin:	800-1500kg
Frekuensi eksitasi:	60 Hz
Kekuatan eksitasi:	5,5 buku
Ketebalan sebaran:	10-18mm
Kekuatan total:	10.5-16.5 kW
Komponen inti:	Mesin, pompa hidrolik, tombak bergetar
Frekuensi getaran:	200 Hz
Kekuatan eksitasi khusus:	≥30 kN
Ketebalan penyebaran khusus:	10-50 mm
Daya total khusus:	15-50 kW
Struktur mesin:	Rangka dengan pipa baja yang menebal
Perangkat berjalan:	Rol atau roda baja

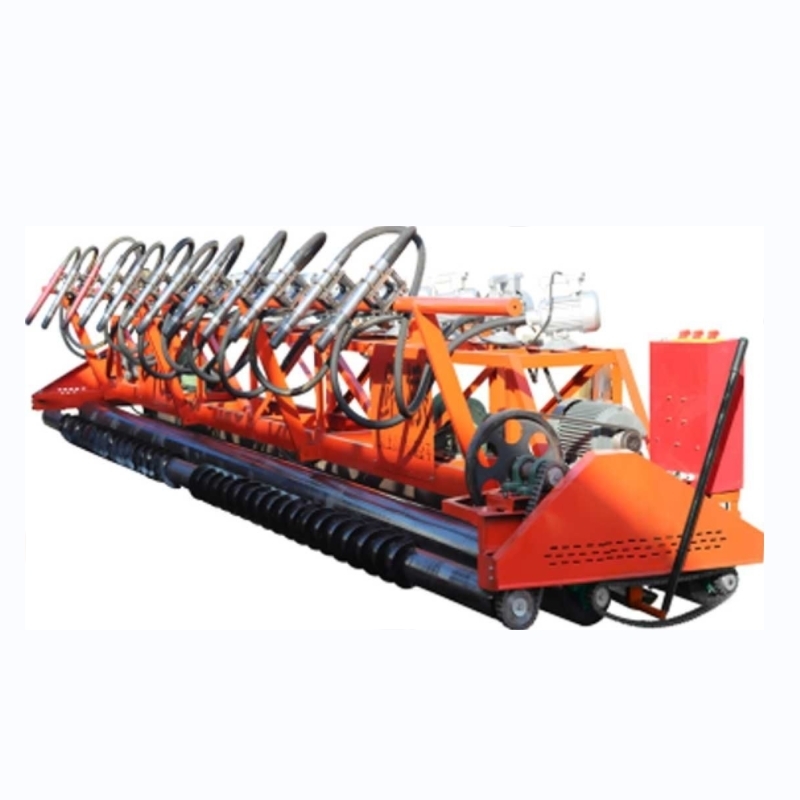

SMP-600 Multi Roll Concrete Paving Machine for Bridge and Tunnel Construction

SMP-600 Multi Roll Road Leveling Machine

Professional concrete screed floor leveling machine designed for efficient concrete placing operations.

Product Specifications

Attribute	Value
Core Components	Engine, hydraulic pump, vibrating spear
Weight	1000 kg
Warranty	1 Year (3 years for core components)
Roller Length	4000-6000mm
Walking Speed	5~8 m/min
Condition	New
Applicable Industries	Bridge, tunnel construction
Unique Selling Point	Low Maintenance Cost

Key Features

Widely used in cement concrete surface paving for highways, bridges, tunnels, municipal roads, and airport runways
Improves mechanized paving capacity and accelerates construction progress
Combines vibration, fabric, slurry lifting, leveling, and self-walking functions
Modular truss design for quick assembly and flexible width configuration
High-quality thickened steel pipe construction for durability
One-person operation reduces labor costs and improves efficiency

Technical Parameters

Project	4-axis Machine Parameters	Customized Vibration Machine
Roller length(mm)	4000-6000	4000-6000
Excitation frequency(Hz)	60	200
Excitation force(kN)	5.5	≥30
Walking speed(m/min)	5~8	5~8
Spread thickness(mm)	10-18	10-50
Total power of motor(kW)	10.5-16.5	15-50
